When it comes to heat exchangers, the choice between a double pipe vs. shell and tube heat exchanger system can significantly impact both performance and application suitability. At Torq N Seal, we specialize in providing solutions that enhance the efficiency and reliability of heat exchangers. Knowing the fundamental differences between these two types of heat exchangers can help you make an informed decision for your specific needs.
What is a Double Pipe Heat Exchanger?
A double pipe heat exchanger, also known as a hairpin or twin-tube heat exchanger, consists of two concentric tubes. The inner tube carries one fluid, while the annular space between the inner and outer tubes carries another. The two fluids flow in counter-current directions, which enhances the heat transfer efficiency.
Double pipe heat exchangers are typically used for smaller-scale applications where space is limited and the heat transfer requirements are moderate.

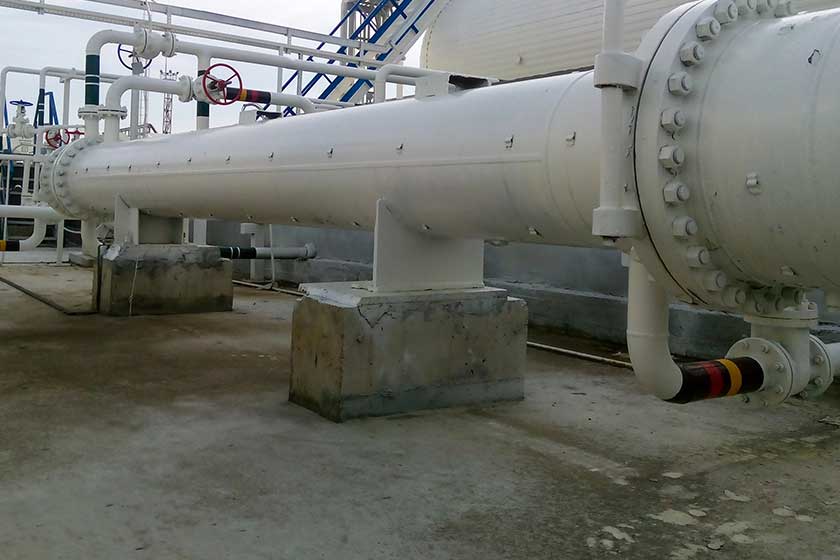

What is a Shell and Tube Heat Exchanger?
A shell and tube heat exchanger consists of a series of tubes, which one set of fluid travels through, and a shell that encloses these tubes. The second fluid runs over the tubes that carry the first fluid, typically in a perpendicular or cross-flow path to maximize heat transfer.
This type of heat exchanger is widely used in industries due to its robust design and ability to handle large volumes of fluids with significant temperature differences.
Comparing Double Pipe vs. Shell and Tube Heat Exchanger
Construction and Design
Double pipe heat exchangers have a simpler design and are easier to construct compared to shell and tube heat exchangers. Their construction allows for easy cleaning and maintenance, and they can be configured in series or parallel to increase effectiveness. However, their simplicity also limits their capacity and scale of operation.
In contrast, shell and tube heat exchangers can be highly customized to meet specific operational demands. They can accommodate higher pressures and temperatures, making them suitable for demanding industrial environments. Their design variations can include multiple passes and different tube arrangements to optimize heat transfer.
Performance and Efficiency
The performance of a double pipe heat exchanger is generally lower than that of a shell and tube design due to its smaller surface area and lower heat transfer rate. They are best suited for applications where the heat duty is low and space savings are critical.
Shell and tube heat exchangers are more efficient in handling larger heat duties. They provide a greater surface area for heat exchange and can be designed to handle extreme temperatures and pressures. This makes them a preferred choice for power plants, chemical processing, and other heavy industrial applications.
Maintenance and Durability
Maintenance is another area where double pipe and shell and tube heat exchangers differ. Double pipe units are easier to dismantle and clean, whereas shell and tube systems, due to their complexity and size, require more effort and specialized tools like high-pressure tube plugs for maintenance. Torq N Seal’s condenser tube plugs are often used to ensure reliable sealing after maintenance or inspection tasks.
Torq N Seal’s Expertise
At Torq N Seal, we recognize that the choice between a double pipe vs. shell and tube heat exchanger involves considering various factors such as application, scale, and maintenance. Our expertise in sealing technology ensures that no matter the type, your heat exchangers perform efficiently and reliably, minimizing downtime and maintenance costs.
While double pipe heat exchangers offer simplicity and ease of maintenance, shell and tube systems cater to higher capacity and efficiency demands. With Torq N Seal’s advanced sealing solutions, you can maximize the performance and lifespan of either type, ensuring your operations run smoothly and effectively.
